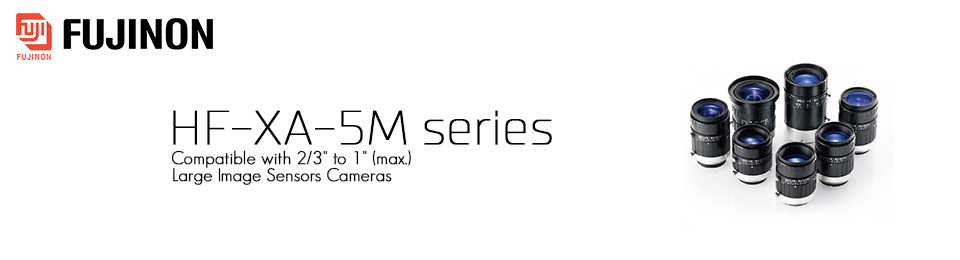

HF-XA-5M series

FUJINON HF-XA-5M series is designed for “4DHR” and compatible with IMX250 high performance CMOS image sensor (2/3″, 5 megapixels, 3.45µm pixel pitch).

Main features

1) Minimizing degradation of resolution even when the shooting distance or aperture is changed



General machine vision camera lenses exhibit problematic degradation of resolution when the shooting distance or aperture is changed. FUJINON HF-12M features high performance “4D HR” to minimize such degradation.

It maintains a highly consistent image sharpness from the centre to the edges, while mitigating degradation of resolution caused by changes in the shooting distance or aperture. This enables consistent delivery of high-resolution images under a wide variety of installation and shooting conditions.





2) Anti-shock & vibration design

【Compliant with IEC60068-2-6】

・Vibration frequency of 10-60Hz (amplitude of  0.75mm), 60-500Hz (acceleration of 100m/S2)

・Sweep frequency of 50 cycles

Our unique mechanical design* realizes anti-shock and vibration performance compatible with various installation environments.

* Only the HF6XA-5M and HF50XA-5M are equipped with Anti Shock & Vibration.



3) Selectable three locking holes

FUJINON HF-XA-5M series comes with three locking holes each for the iris and focus. They are located on the lens barrels, allowing you to select the optimum holes for your needs.





Please follow and like us:

Model
HF6XA-5M
HF8XA-5M
HF12XA-5M
HF16XA-5M
HF25XA-5M
HF35XA-5M
HF50XA-5M
